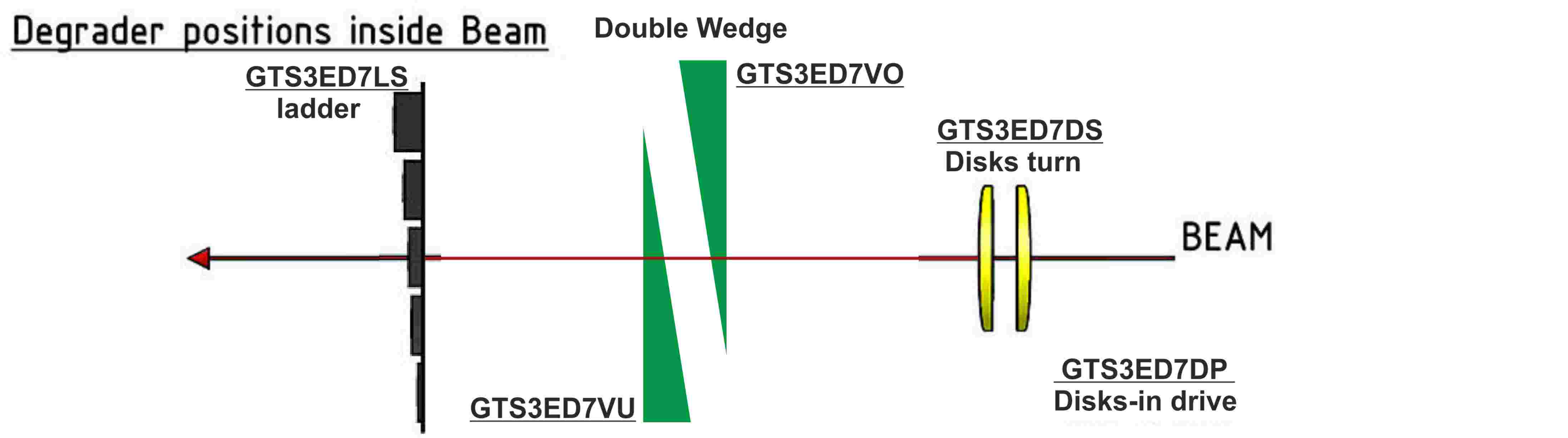

WEDGE

TS3ED7VO/

TS3ED7VU

Area

density

[mg/cm²]

Position VO

[mm]

Position VU

[mm]

MINIMUM

302.40

-2.5

-2.5

MAXIMUM

 6,717.60

-497.5

-497.5

LADDER

TS3ED7LS

Area density

[mg/cm²]

Position

[mm]

Plate-1

4320

50

Plate-2

8640

150

Plate-3

12960

250

Plate-4

17280

350

Plate-5

21600

450

DISK

TS3ED7DS

Area density

[mg/cm²]

Angle

[mrad]

Motor-Angle

[degree]

MINIMUM

737.10

0

+90°

MAXIMUM

737.10

17.81

0°
